MTI Vented Edge Metal 4' Long (52 Linear Feet/Tube)
SKU VMEM 3168
by MTI
Original price
$220.15
-
Original price
$220.15
Original price
$220.15
$220.15
-
$220.15
Current price
$220.15
52.0ft | $4.23 / ft
Ships in 1–2 business days
VENTED MTI EDGE METAL™
DESIGNED FOR MOISTURE CONTROL
VMEM 3168
RAINCAVITY COMPATIBLE VENTED TERMINATION

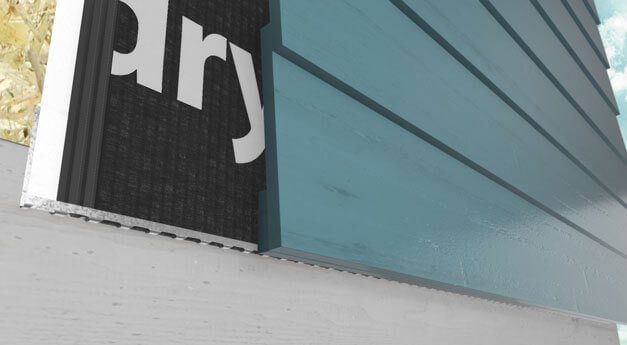

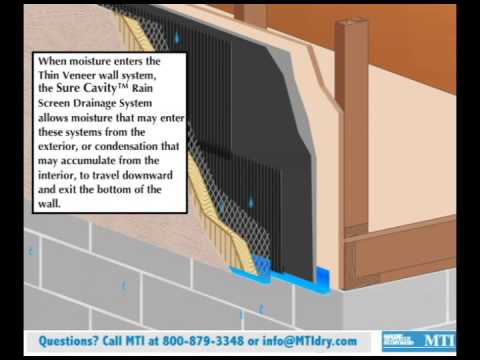

An air gap allows gravity to drain moisture from walls, but without proper termination, trapped water can lead to long-term damage. Vented MTI Edge Metal™ is specifically designed to fit the Sure Cavity® rainscreen system, featuring large slots that allow effective drainage and ventilation. Ideal for use in roof systems, thin veneers over cement board, and siding applications.
FEATURES & BENEFITS
- Accommodates rainscreen drainage mat: Seamlessly integrates with Sure Cavity® and Gravity Cavity™ systems.
- Large slots for weeping and ventilation: Ensures proper moisture drainage and airflow.
APPLICATIONS
- Siding
- Roof systems
- Thin veneers with cement board
INSTALLATION INSTRUCTIONS

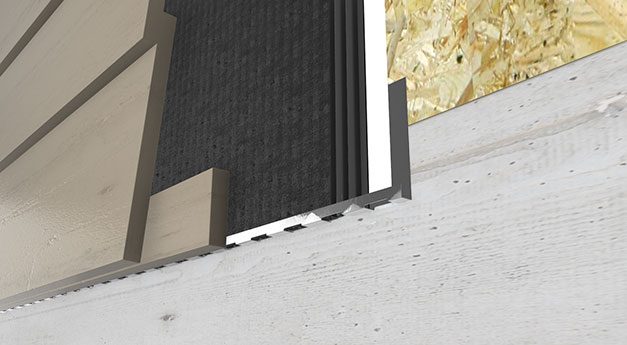

- Position correctly: Install below the foundation plate line, ensuring at least 4 inches of clearance above the ground.
- Secure to the foundation: Extend the edge metal down a minimum of 2 inches onto the foundation.
- Layer materials properly: Place WRB and Sure Cavity® or Gravity Cavity™ drainage plane inside the Vented MTI Edge Metal™.
- Roof applications: Can also be used as part of a roof drainage system beneath shingles. See HyperSpecs > Roofs for detailed installation guidelines.

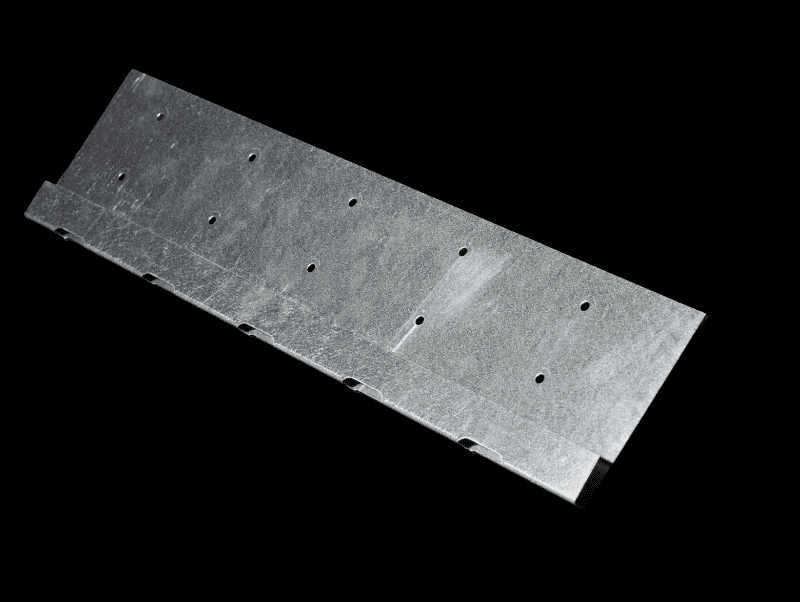

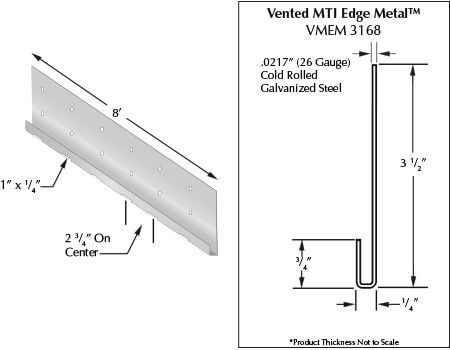

SPECIFICATIONS
- Material: 26-gauge galvanized steel
- Design: Bent into a J-channel with an 85° angle
- Vertical attachment flange: 3.656" (89 mm)
- Ground: 0.5" (13 mm)
- Bonding slots: 1" (25 mm), punched 1.75" (44 mm) apart
- Length: 4 feet
PACKAGE QUANTITIES
| Product Number | VMEM 3168 |
| Piece Length (Feet) | 4 |
| Units per Tube | 13 |
| Linear Feet per Tube | 52 |
