MTI Edge Metal 4' Long (52 Linear Feet/Tube)

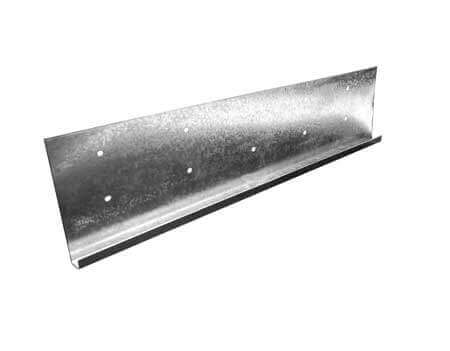

MTI EDGE METAL™

METAL TERMINATION FOR ROOF DRAINAGE MAT

MEM 3168

SECURE TERMINATION FOR ROOF DRAINAGE PLANES

MTI Edge Metal™ provides a durable and effective termination for rainscreen drainage planes at critical roof transition points. Designed to work with drainage mats, it ensures proper water management while maintaining the integrity of the building envelope.

FEATURES & BENEFITS

• Reliable termination: Secures the drainage plane at roof edges and valleys.
• Durable construction: 26-gauge galvanized steel for long-lasting performance.
• Compatible with drainage systems: Works with Sure Cavity® and Gravity Cavity™.

APPLICATIONS

• Rake edges of roofs
• Roof valleys
• Rainscreen drainage plane termination

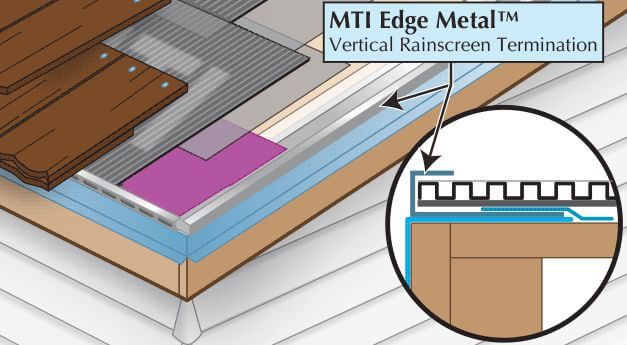

INSTALLATION INSTRUCTIONS

1. Install on rake edges: Secure MTI Edge Metal™ to terminate the rainscreen drainage plane along roof rakes.
2. Use in roof valleys: Properly position in valleys for moisture control.
3. Integrate with vented edge metal: Pair with MTI Vented Edge Metal™ at the bottom edge to allow drainage from Sure Cavity® or Gravity Cavity™.

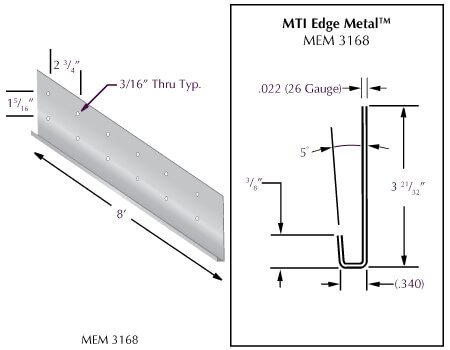

SPECIFICATIONS

• Material: 26-gauge galvanized steel
• Design: J-channel with an 85° angle
• Vertical attachment flange: 3.656" (89 mm)
• Ground: 0.5" (13 mm)
• Bonding slots: 1" (51 mm), punched 0.25" (6 mm) apart
• Length: 4 feet

PACKAGE QUANTITY
