CORE CAVITY WEEP™
WEEPS FOR CMU VENEERS
CCV 5020
DRAIN BLOCK CORES & VENEER CAVITY

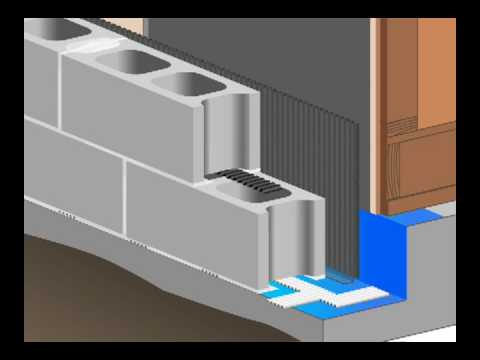

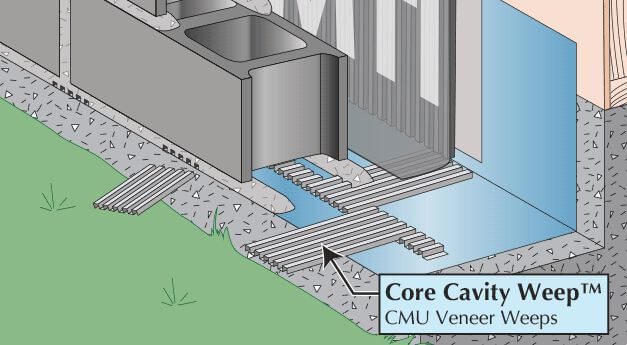

CMU and Jumbo Brick Veneers create two cavities where water can accumulate: in the block cores and the cavity between the veneer and the structural back-up wall. Core Cavity Weep™ features a unique design that drains both the cores and the wall cavity by creating drainage tunnels below the bed joint mortar directly on the flashing.
APPLICATIONS
- CMU veneers: Designed specifically for concrete masonry units and jumbo brick veneers.
THE MTI ADVANTAGE
- Forms bottom of bed joint mortar: Ensures proper drainage and stability.
- Weeps at the lowest point of the wall: Effectively channels moisture out of the structure.
- Drains cavity and block cores in CMU or jumbo brick veneer: Dual drainage capability for comprehensive moisture management.
- Easy-to-install self-spaced weeps: Simplifies the installation process.

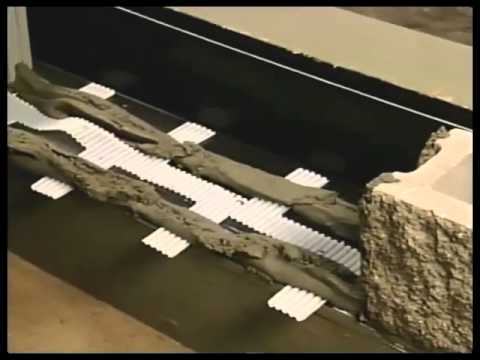

CORE CAVITY WEEP™ INSTALLATION
- Position Core Cavity Weep™ on the flashing with the material centered on the wall. Ensure intermittent legs extend into the wall cavity and to the exterior.
- Place a bed joint of mortar on Core Cavity Weep™ and lay masonry units following standard installation procedures.
- Tool joints and lightly score the legs at the face of the wall. Crack off the legs by pushing downward while the mortar is still plastic.
- Finish tool joint and brush the surface for a clean, professional appearance.

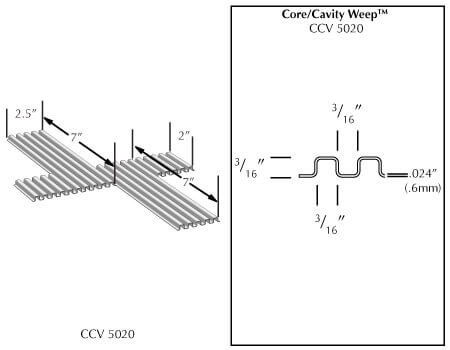

CORE CAVITY WEEP™ SPECIFICATIONS
- Weep legs: 2.5" (64 mm) wide, offset on each side of the continuous belt at 9.5" (241 mm) on center.
- Continuous belt width: 2" (51 mm).
- Total width: 1'-0" (305 mm).
| Product | CCV 5020 |

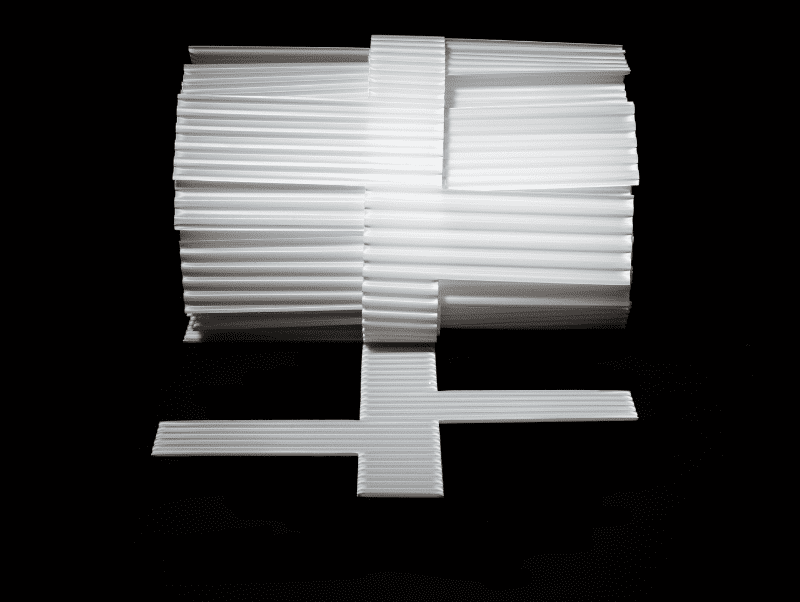

| Roll Length (Feet) | 25 |
| Rolls per Box | 8 |
| Linear Feet per Box | 200 |
