MTI Cavity Weep Self-Spaced Brick Weep
SKU CV 5010 BUNDLE
by MTI
Original price
$138.35
-
Original price
$680.00
Original price
$138.35
$138.35
-
$680.00
Current price
$138.35
100.0ft | $1.38 / ft
Ships in 1–2 business days
MTI CAVITY WEEP
SELF-SPACED BRICK WEEPS
CV 5010

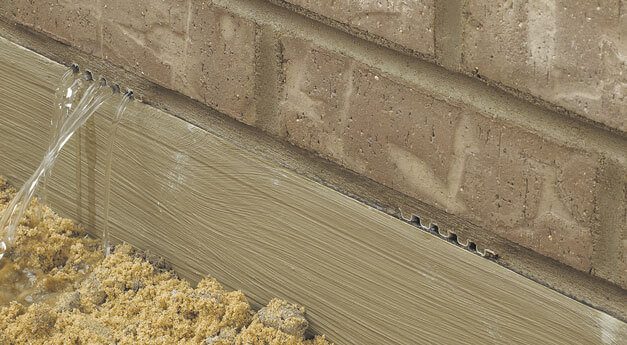

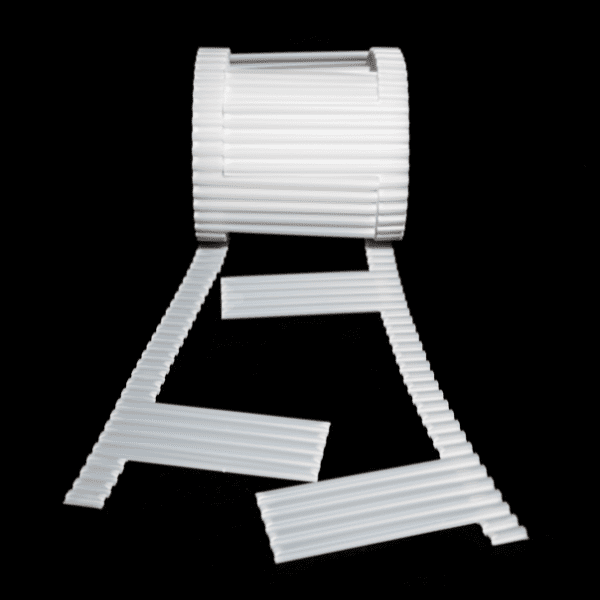

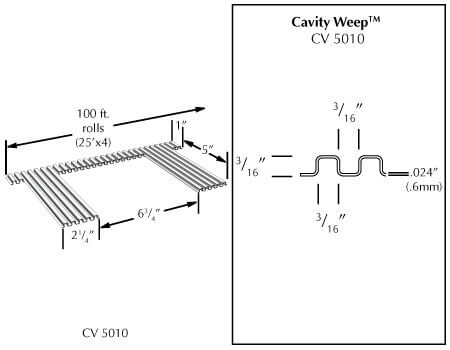

Cavity Weep™ is a self-spaced brick weep solution designed for easy installation and optimal drainage. Its innovative design includes a continuous belt and weep legs to ensure consistent spacing and efficient water egress in masonry walls.
FEATURES AND BENEFITS
- Self-spaced design ensures proper weep placement.
- Continuous belt provides consistent cavity coverage.
- Durable material withstands mortar and environmental conditions.
- Easy to install and remove for a clean, professional finish.
INSTALLATION

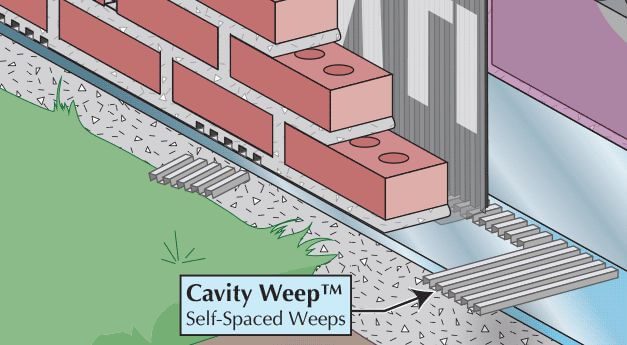

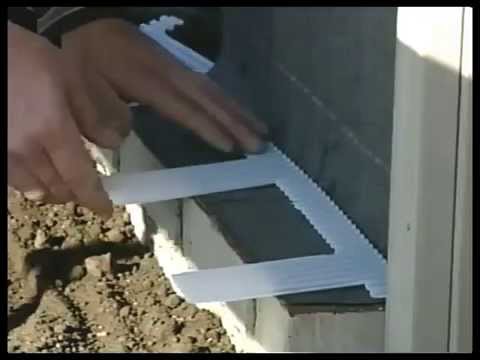

- Place Cavity Weep™ on the flashing with the continuous belt centered in the cavity and legs extending 1” to 1.5” from the wall face.
- Apply a bed joint of mortar over Cavity Weep™ and lay masonry units.
- Tool the joints and lightly score the legs at the wall face. Crack off the legs by pushing downward while the mortar is still plastic.
PACKAGING QUANTITIES
| Product Number | CV 5010 |
| Roll Length (Feet) | 25 |
| Rolls Per Bundle | 4 |
| Linear Feet per Bundle | 100 |
| Bundles per Box | 6 |
| Linear Feet per Box | 600 |
RESOURCES
