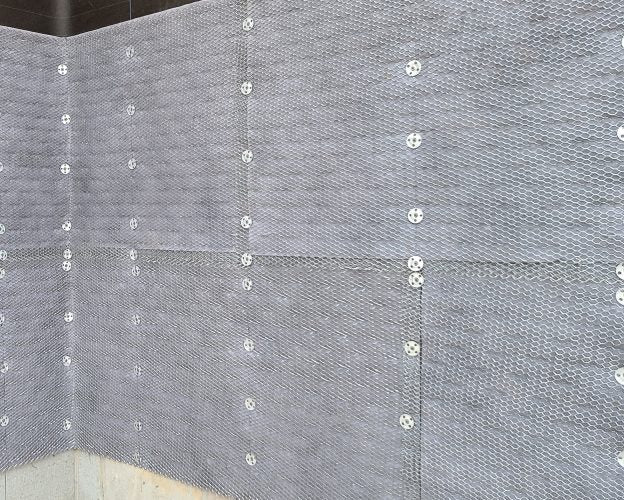

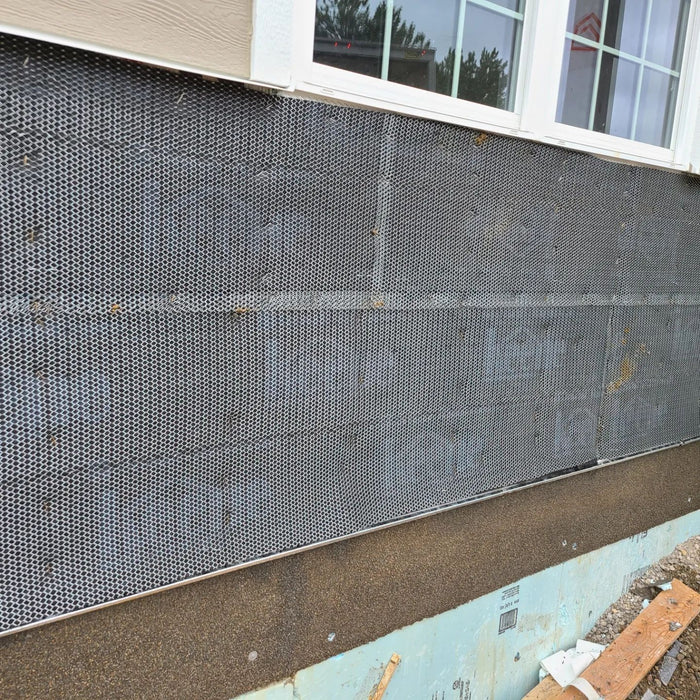

LathNet Mortar Net 27 by 97 inches used for masonry walls to improve mortar application and adhesion

Mortar Net LathNet™ 27" x 97" (100 Pieces/Pallet)

SKU 02-X-0054
by Mortar Net
$4,727.30 - $6,454.55
$4,727.30
$4,727.30 - $6,454.55
$4,727.30
100.0item | $47.27 / item
⏳ Made-to-Order Item
Typical production lead time: 1-2 weeks
Once an order is placed, no changes, cancellations, or returns are accepted.
Request a quote

PATENTED DRAINAGE PLANE & METAL LATH SYSTEM FOR ADHERED MASONRY VENEERS

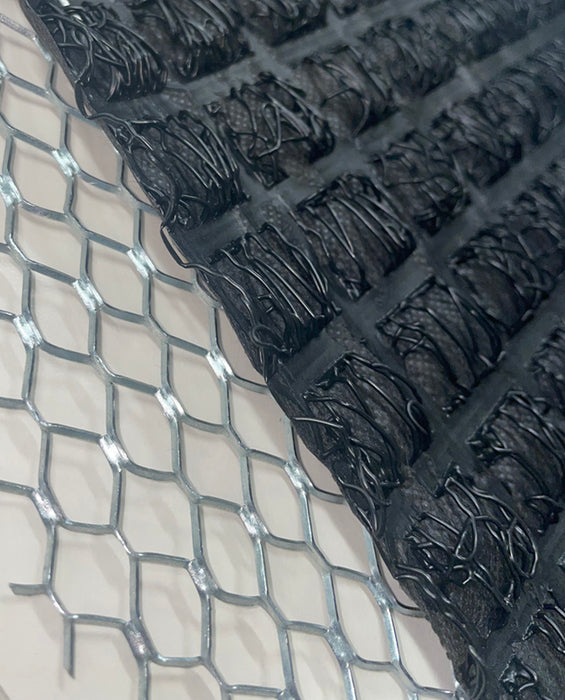

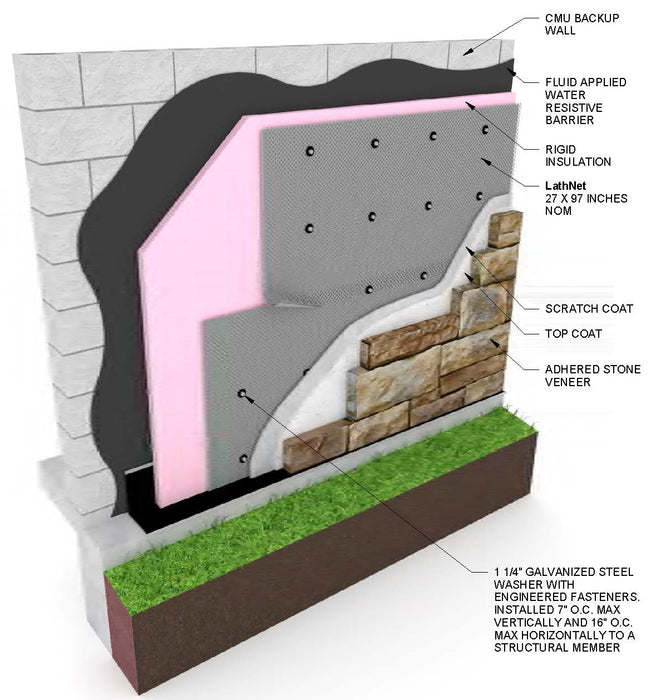

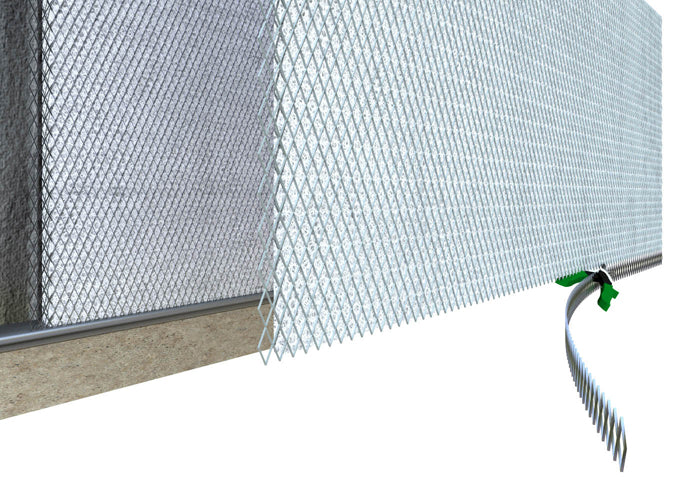

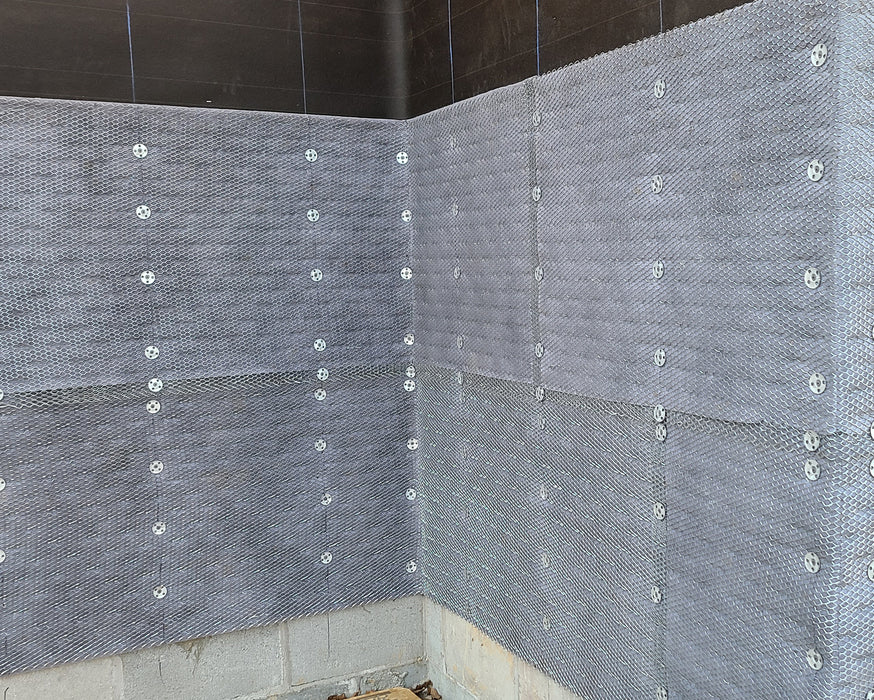

Engineered for use with stucco, thin brick, stone, and other adhered masonry veneers, LathNet™ combines a galvanized expanded metal lath with a structured strand polymer drainage mesh into a single, factory-assembled component. This patented system creates a continuous drainage plane between the lath and the weather-resistant barrier, while significantly increasing ventilation behind the veneer—delivering up to 5× greater airflow compared to traditional setups.

Developed in collaboration with professional masons, LathNet™ streamlines installation by eliminating the need to apply a drainage mat and lath separately. The system conforms to ASTM C847 Size requirements and meets the Masonry Advisory Council recommendation for exterior adhered masonry wall drainage.

FEATURES AND BENEFITS

  • One-step installation – drainage plane and lath in a single product

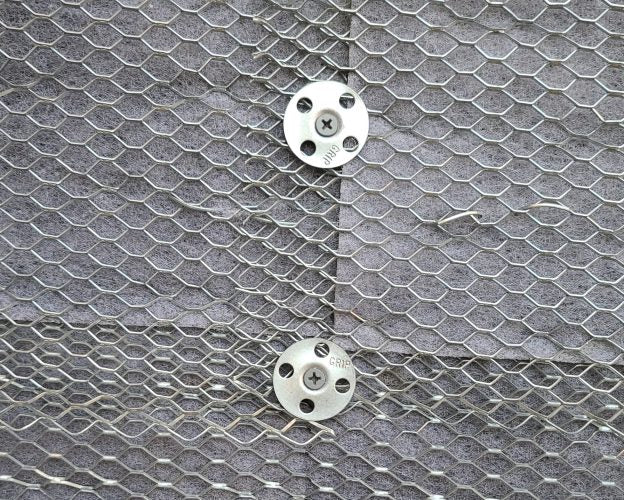

  • Installs like standard metal lath – no new tools or skills needed

  • 5× greater airflow for enhanced drying and ventilation

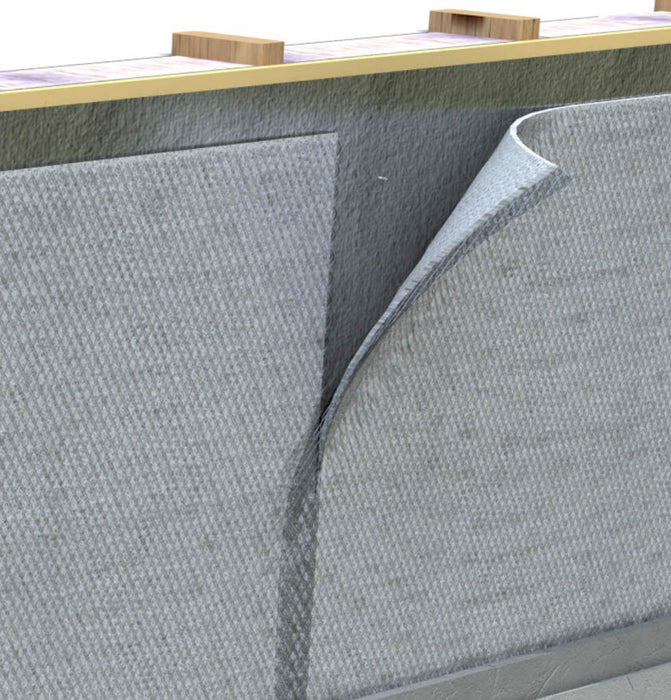

  • Clearly marked 1" minimum overlap for accuracy

  • Promotes full lath encapsulation without clogging the drainage plane

  • Self-furring for better mortar adhesion

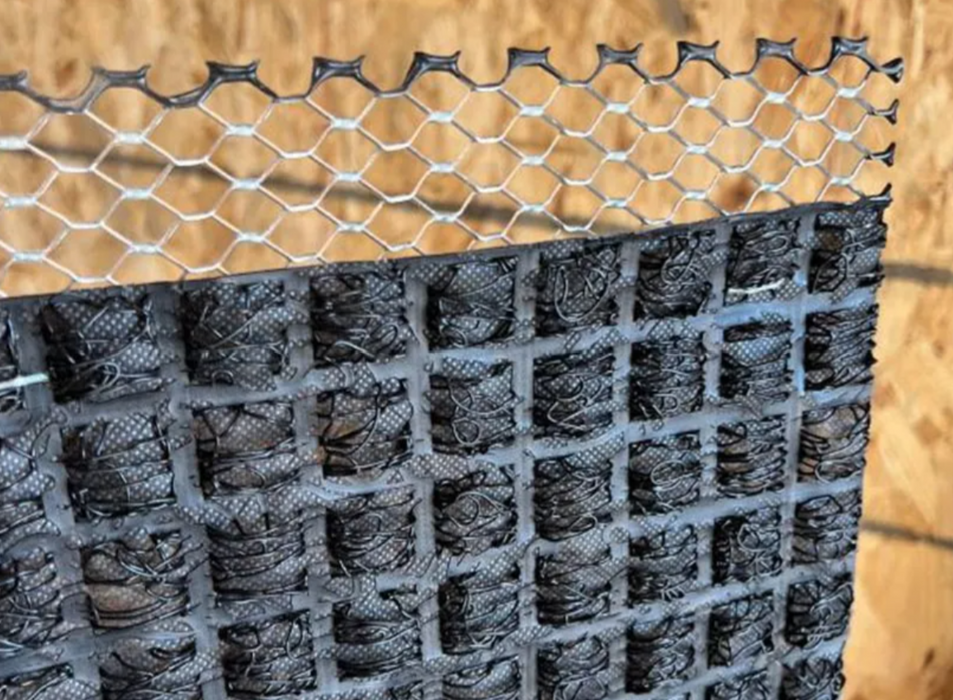

  • Structural strand polymer mesh resists mortar infiltration while draining moisture to weeps

  • High-strength 2.5 lb dimpled, diamond mesh G-60 galvanized expanded steel

  • Assembled in the USA from 100% USA-made materials

APPLICATIONS

  • Stucco

  • Thin brick

  • Stone veneer

  • Other adhered masonry veneer systems

SIZES AND PACKAGING

DESCRIPTION WIDTH LENGTH  THICKNESS
2.5# self-furring dimpled steel mesh 27″ 97″ ¼”
2.5# self-furring dimpled steel mesh 27″ 97″ ⅜”
3.4# self-furring dimpled steel mesh 27″ 97″ ¼”
3.4# self-furring dimpled steel mesh 27″ 97″ ⅜”



  • Nominal installed coverage:  17 1/3 SF/sheet

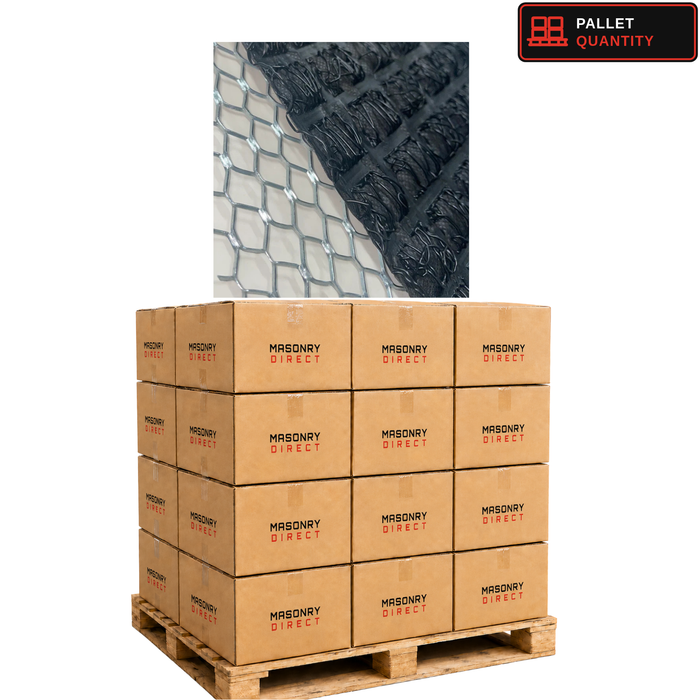

  • 100 sheets per pallet (approximate weight:  600 lbs.)
