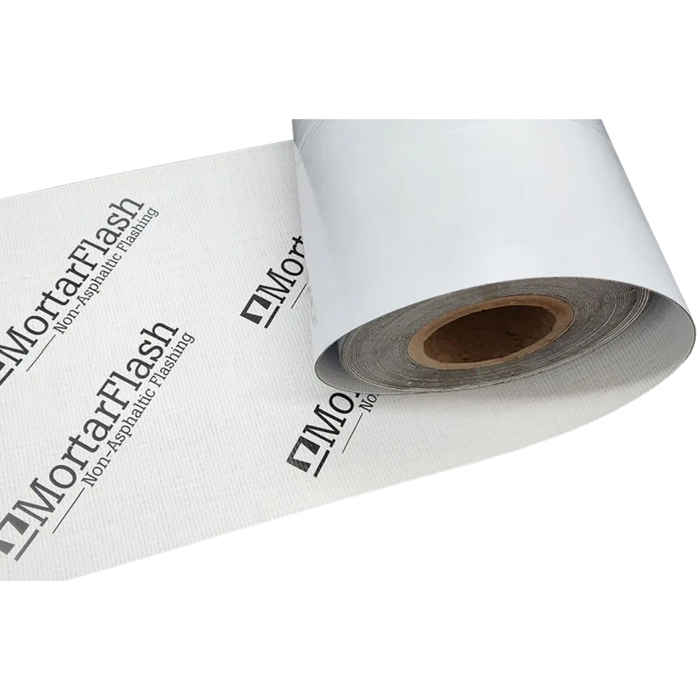

MortarFlash™ Non-Asphaltic is a 40-mil, polyethylene blend peel-and-stick flashing membrane designed for applications on masonry, concrete, steel, gypsum, and wood. It provides an effective solution when prefabricated accessories are not feasible, as it can be used to create inside and outside corners.
FEATURES
-
Size Options: Available in 12″, 16″, 18″, 24″, and 36″ x 75′ rolls; other sizes available upon request
-
Color: White membrane
-
Durability: Resistant to tears and punctures
-
Drool: Will not drool when exposed to UV or heat
-
Primer: Not required; however, the use of a termination bar and a bead of sealant under the leading edge of the flashing is recommended
-
Note: When prefabricated accessories are not feasible, MortarFlash™ Non-Asphaltic can be used to create inside and outside corners
TECHNICAL DATA
-
UV Accelerated Weathering: ASTM G154
-
Mullen Burst: ASTM D751 – 400 psi (2760 kPa); More than 90% strength retained after 2000 hours exposure
-
Heat Resistance:
- Short Exposure: 194°F (90°C)
- Continuous Exposure: 160°F (71°C)
- Melting Point: 230°F (110°C)
-
Tensile Strength: ASTM D751
- Machine Direction: 230 lbs (105 kg)
- Cross Direction: 210 lbs (95 kg)
-
Force Elongation: 20%
SIZES AND PRODUCT PACKAGING
Sold in box quantities only.
| Thickness |
Width |
Length |
Rolls/Box |
| 0.040″ |
12" |
75′ |
3 |
| 0.040″ |
16" |
75′ |
2 |
| 0.040″ |
18" |
75′ |
2 |
| 0.040″ |
24" |
75′ |
1 |
| 0.040″ |
36" |
75′ |
1 |
AVAILABLE FLASHING COMPONENTS
Recommended for use with MortarFlash Non-Asphaltic
-
Termination Bars
- PVC – 1/8″ thick, UV stabilized
- T1 Stainless steel – 1/8″ x 1″ x 8′ Type 304
- T2 Stainless steel w/ lip – 26 gauge x 1-1/2″ x 8′ Type 304
-
Drip Edge
- Stainless Steel – 26 gauge Type 304
- Kynar-coated galvanized steel – 24 gauge
- Cold-rolled copper – 24 gauge
-
CompleteFlash Inside/Outside Corners & End Dams
- Synthetic Rubber (SR)
- Thermoplastic Polyolefin (TPO)
-
Metal Drip Edge Corners
