PATENTED DRAINAGE PLANE & METAL LATH SYSTEM FOR ADHERED MASONRY VENEERS

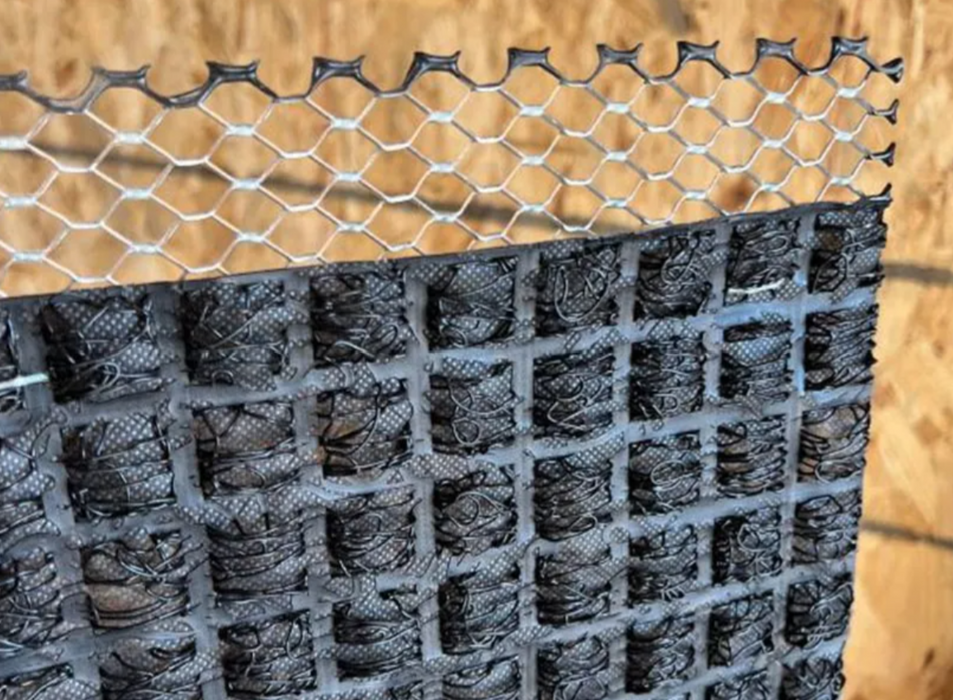

Engineered for use with stucco, thin brick, stone, and other adhered masonry veneers, LathNet™ combines a galvanized expanded metal lath with a structured strand polymer drainage mesh into a single, factory-assembled component. This patented system creates a continuous drainage plane between the lath and the weather-resistant barrier, while significantly increasing ventilation behind the veneer—delivering up to 5× greater airflow compared to traditional setups.
Developed in collaboration with professional masons, LathNet™ streamlines installation by eliminating the need to apply a drainage mat and lath separately. The system conforms to ASTM C847 Size requirements and meets the Masonry Advisory Council recommendation for exterior adhered masonry wall drainage.
FEATURES AND BENEFITS
-
One-step installation – drainage plane and lath in a single product
-
Installs like standard metal lath – no new tools or skills needed
-
5× greater airflow for enhanced drying and ventilation
-
Clearly marked 1" minimum overlap for accuracy
-
Promotes full lath encapsulation without clogging the drainage plane
-
Self-furring for better mortar adhesion
-
Structural strand polymer mesh resists mortar infiltration while draining moisture to weeps
-
High-strength 2.5 lb dimpled, diamond mesh G-60 galvanized expanded steel
-
Assembled in the USA from 100% USA-made materials
APPLICATIONS
SIZES AND PACKAGING
| DESCRIPTION |
WIDTH |
LENGTH |
THICKNESS |
| 2.5# self-furring dimpled steel mesh |
27″ |
97″ |
¼” |
| 2.5# self-furring dimpled steel mesh |
27″ |
97″ |
⅜” |
| 3.4# self-furring dimpled steel mesh |
27″ |
97″ |
¼” |
| 3.4# self-furring dimpled steel mesh |
27″ |
97″ |
⅜” |
- Nominal installed coverage: 17 1/3 SF/sheet
- 100 sheets per pallet (approximate weight: 600 lbs.)
