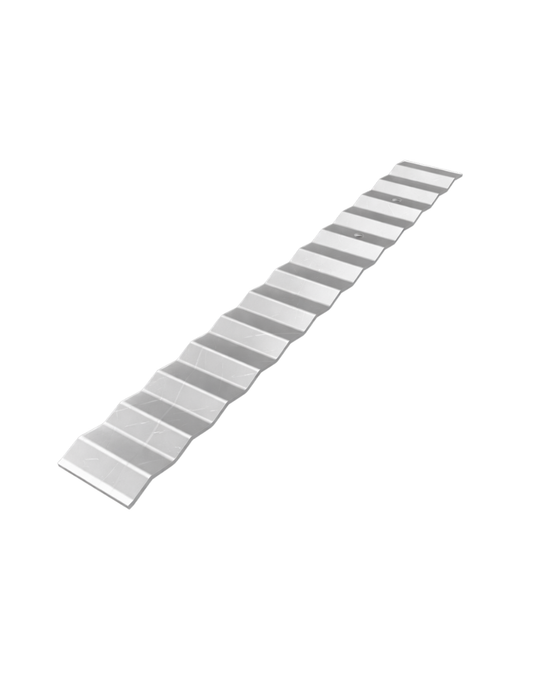

Stainless Steel Corrugated Wall Ties are designed to secure masonry veneer to wood frame backup walls in residential and light commercial construction. These ties provide a simple, effective anchoring solution for brick veneer applications where the air space between the veneer and backup wall does not exceed 1 inch.

Note: TMS 402 Building Code permits corrugated wall ties only in wall assemblies with a maximum 1" air space. For larger air spaces, use a corrugated brick veneer anchor designed for extended cavity applications.

Features & Benefits

• Securely anchors masonry veneer to wood frame backup walls

• Intended for use with wood stud construction only

• Approved for wall assemblies with a maximum 1" air space

• Standard size: 7" long x 7/8" wide

• Available in 22 gauge and 16 gauge thicknesses

• Stainless steel construction for superior corrosion resistance

• Ideal for coastal, high-moisture, and corrosive environments

• Simple and economical veneer anchoring solution

• Suitable for residential and light commercial applications

Applications

• Brick veneer over wood stud framing

• Residential exterior wall systems

• Wood frame backup wall construction

• Light commercial masonry veneer projects

• Projects requiring maximum corrosion resistance

Installation Notes

• For use with wood frame backup walls only.

• Maximum permitted air space is 1" in accordance with TMS 402 requirements.

• For larger cavity widths, use a corrugated brick veneer anchor designed for extended air space applications.

• Select tie gauge based on project requirements and applicable building codes.

• Stainless steel is recommended where maximum corrosion resistance and long-term durability are required.
