Commercial Masonry Drainage Device, The Keystone™ Cut

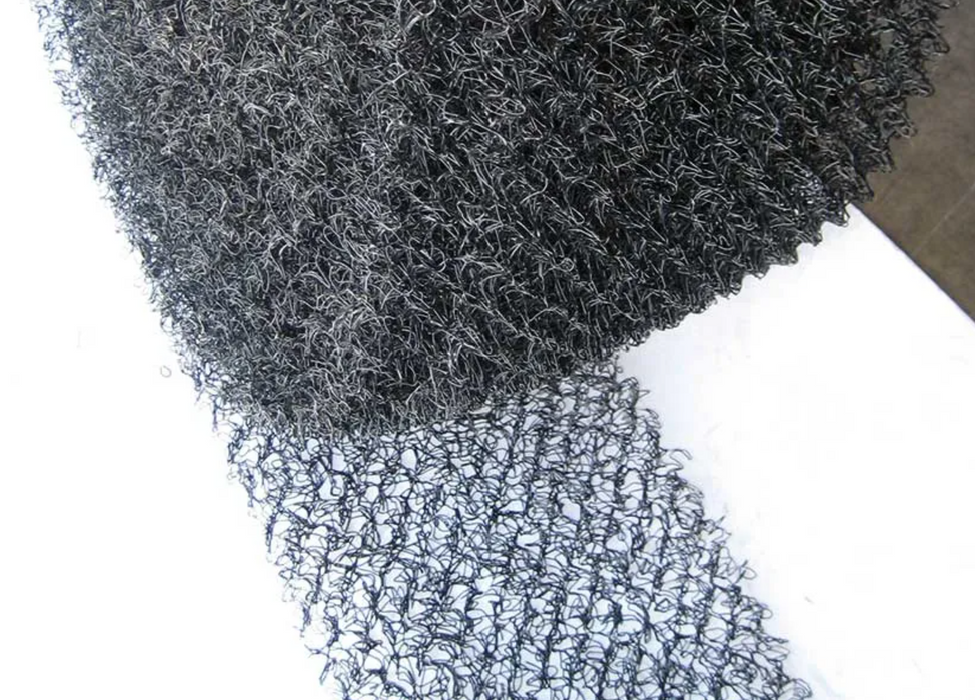

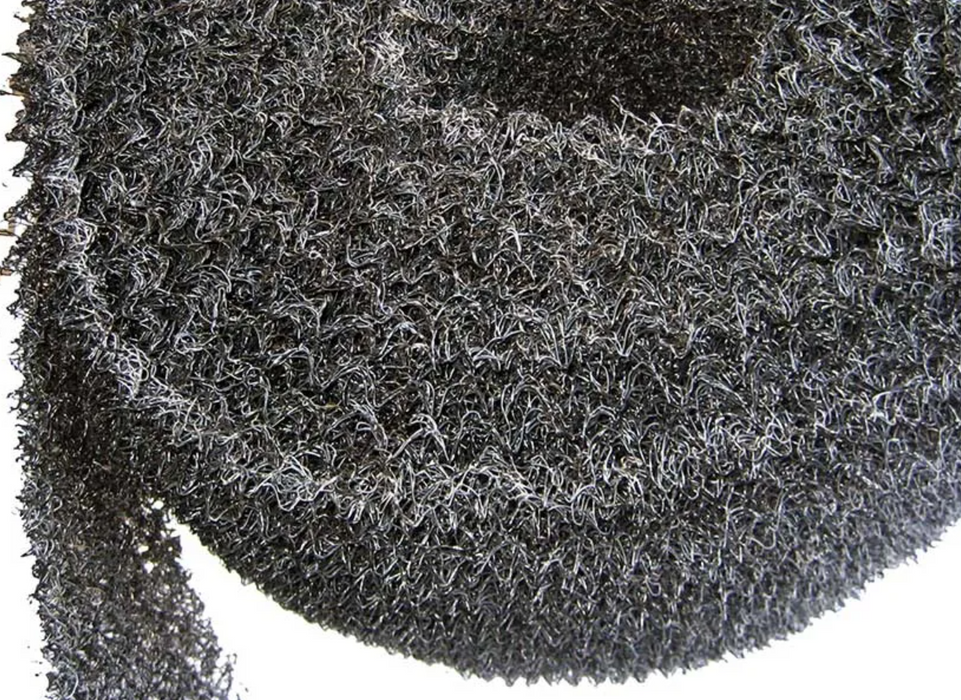

Driwall™ Mortar Deflection is a masonry drainage device designed to catch and hold mortar droppings. Driwall™ Mortar Deflection is placed in a strip horizontally in a cavity wall.
DRIWALL™ MORTAR DEFLECTION 0.5-040
Thickness 0.375 Inches / 9 mm
- 3/8" x 10" x 50'
- Commercial and residential masonry cavity walls that are 1.0-inch thick OR LESS
- Commercial and residential masonry cavity walls that are greater then 1.0-inch with additional insulation
- Box quantity is 4 rolls or 200 linear ft
- Rolls are 50' long
See 3/8" Submittal Here
DRIWALL™ MORTAR DEFLECTION 1.0-075
Thickness 0.8 Inches / 20 mm
- 1" x 10" x 50'
- Commercial and residential masonry cavity walls 1.0-inch thick
- Commercial and residential masonry cavity walls greater than 1.0-inch with additional insulation
- Box Quantity is 4 rolls or 200 linear ft
- Rolls are 50' long
See 1" Submittal Here
DRIWALL™ MORTAR DEFLECTION 2.0-160
Thickness 1.60 Inches / 41 mm
- 2" x 10" x 25'
- Commercial and residential masonry cavity walls 2.0-inches thick
- Commercial and residential masonry cavity walls greater than 2.0-inches with additional insulation
- Box quantity is 4 rolls or 100 linear feet
- Rolls are 25' long
See 2" Submittal Here
FEATURES AND BENEFITS
- Cavity drainage and protection of flashing in one product
- Stone cavity walls
- Guaranteed to stop moisture from clogging weep holes when properly installed
- Simple installation with no mechanical fasteners required
- WILL NOT GROW MOLD; prevents fungus and mildew
- Unlike nylon (polyamide), it absorbs NO MOISTURE
- Polymer core is resistant to most known corrosive chemicals, including solvents
- Perfect width to suspend mortar droppings above weep holes, but below the flashing connection to the interior wall
