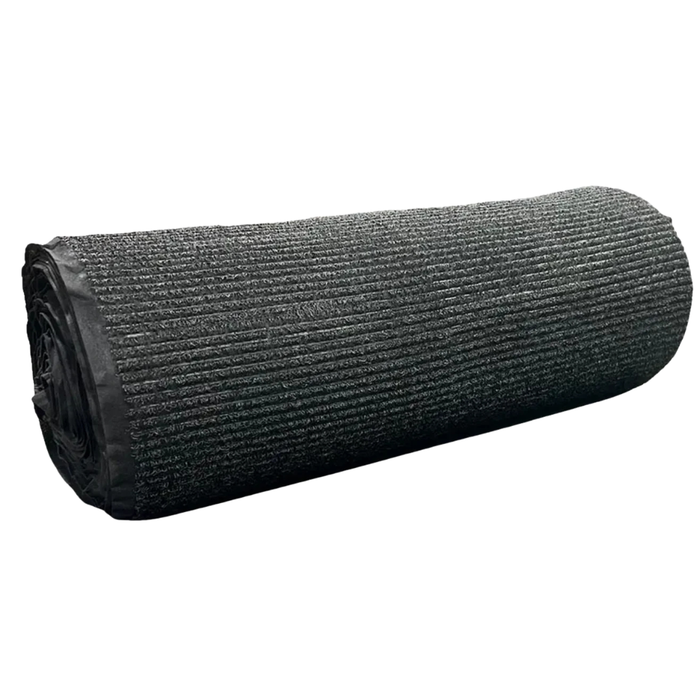

Keene Building Products Driwall™ Prefabricated Composite Drain 10/013 - 48" x 100' Roll

DRAINAGE MAT FOR ELIMINATING HYDROSTATIC PRESSURE

Eliminate hydrostatic pressure and protect your building assemblies with Driwall™ Prefabricated Composite Drain 10/013 — a 0.125-inch, zig-zag geometric patterned core drainage mat engineered for performance in demanding environments. Designed for use behind foundation walls, retaining walls, planters, plaza decks, and balconies, this innovative product replaces the need for traditional aggregate drainage, reducing weight and installation time.

Constructed from an extruded polymer matrix of tangled monofilaments heat-welded at junctions, the core delivers exceptional resilience and durability. The integrated non-woven geotextile filter fabric keeps soil or concrete away from the core, ensuring optimal drainage and long-term performance.

FEATURES AND BENEFITS

• Fire Resistant: Class A fire-rated for enhanced safety.

• Long-Term Stability: Minimal deflection with no creep or degradation over time.

• Space-Saving Design: Thin profile ideal for tight construction assemblies.

• Lightweight & Easy to Handle: Simplifies transport and installation.

APPLICATIONS

• Balconies

• Plaza Decks, Foundation Walls, and Planters

• Bored Rock Tunnels with Moisture Flow

• Will Protect Soft Membranes

ROLL SIZE

• Thickness: 0.125 Inches / 3.175 mm
• Nominal Size: 48" x 100'
• Quantity: 400 Sq. Ft.

RESOURCES

• Technical Data Sheet
• Installation Instructions
• Limited Warranty
• Manufactured Drainage Products Overview
