STAND-OFF MPV BRACKET
CLADDING SUPPORT BRACKET
THE SMART SOLUTION FOR ATTACHING METAL PANEL VENEERS
The Stand-Off MPV Bracket is an innovative, adjustable bracket designed for securely fastening metal panel veneers to exterior walls while virtually eliminating thermal bridging. It also provides a mechanical fastening solution for cavity insulation, ensuring compliance with modern building codes.
Traditional Z-furring methods violate 2006, 2009, 2012, and 2015 IEC requirements for continuous insulation over exterior sheathing in light-gauge metal-framed walls. The Stand-Off MPV Bracket solves this issue, allowing for proper ventilation, insulation performance, and energy efficiency.
✔ FREE SHIPPING on All Sizes & Quantities!
DESCRIPTION

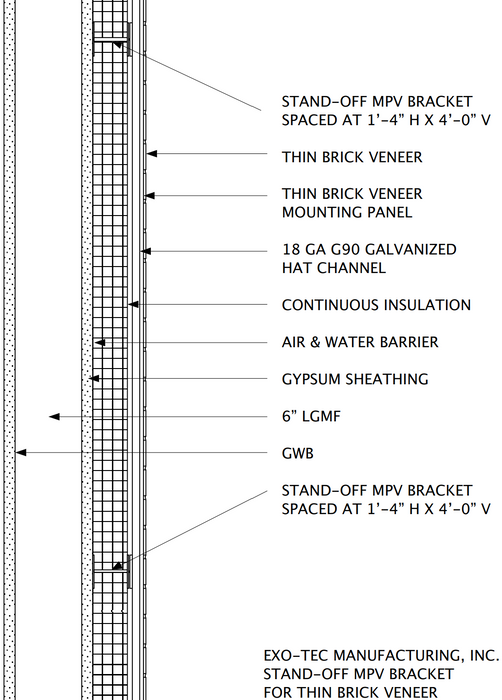

The Stand-Off MPV Bracket is used to attach thin brick veneer systems to buildings that have continuous insulation installed to the exterior of the sheathing. It is adjustable, simple to install and technically fastened the continuous insulation to the building. It is engineered to be spaced at 1’-4” x 4’-0”. 18 ga G90 galvanized hat-channel is attached to Stand-Off MPV Bracket top plates either horizontally or vertically. The thin brick veneer tray is attached to the hat-furring and the thin brick veneer is installed to the tray.
FEATURES & BENEFITS
-
Code-Compliant Attachment – Meets IEC standards by allowing continuous insulation while securely fastening metal panel veneers.
-
Reduces Thermal Bridging – Prevents energy loss by eliminating direct contact between exterior cladding and framing.
-
Adjustable Design – Eliminates the need for shimming, ensuring precise alignment.
-
Secures Continuous Insulation – Mechanically fastens rigid and semi-rigid insulation for enhanced performance.
-
Fire-Resistant & Code Compliant – Structural components meet IBC fire safety standards.
-
Versatile Installation – Designed for 1’-4” horizontal x 4’-0” vertical spacing, accommodating various insulation thicknesses.
TESTED FOR PERFORMANCE
-
Compressive Strength: 550 lbs
-
Tensile Strength: 550 lbs
-
Flexural Strength: 60 lbs (at 1” max extension)
- Test reports available upon request
AVAILABLE FINISHES
-
Zinc & Yellow Chromate Plated Steel (AISI C1008/1010 CR, ASTM B633 Fe/ZN 25 Type II)
-
304 Stainless Steel for superior corrosion resistance
EASY INSTALLATION
- Mark and install Stand-Off MPV Brackets at required spacing.
- Secure the base plate with fasteners.
- Install insulation (rigid, semi-rigid, or spray foam).
- Adjust the top plate to the desired plane.
- Fasten continuous connection hardware.
- Install the rain screen veneer bracket and veneer.
PACKAGING & QUANTITIES
Each component is packaged separately in sealed 5-gallon pails for organized storage and easy access.
| Insulation Size |
Pieces per Pail |
| 1.5" |
200 pcs/pail |
| 2" |
200 pcs/pail |
| 3" |
150 pcs/pail |
| 4" |
125 pcs/pail |
| 5" |
100 pcs/pail |
| 6" |
75 pcs/pail |
*Sold in full pail quantities.
Upgrade to a Code-Compliant Solution Today!
Ensure proper insulation, reduced energy loss, and secure veneer attachment with the Stand-Off MPV Bracket.
