Mortar Net TotalFlash 18" x 5' Panels (10 Panels/Box)

Mortar Net TotalFlash 18" x 5' Panels (10 Panels/Box)

SKU 02-X-0260
by Mortar Net
$569.90 - $813.88
$608.15
$569.90 - $813.88
$608.15
Request a quote

MASONRY CAVITY WALL DRAINAGE SOLUTION

TotalFlash is a complete, factory-assembled masonry cavity wall flashing system that simplifies installation, cuts labor costs, and provides superior performance compared to standard through-wall flashing. It’s the proven solution for keeping veneer walls dry, with over 1 million feet sold and specified in over 1,500 projects.

FEATURES

  • Sold in boxes of 10 pre-assembled 5’ 6” panels (50' net/box)
  • 90% open-weave polyester mesh mortar dropping collection mat with weep tabs
  • 18” standard height; additional sizes available: 12", 24", and custom sizes upon request
  • Customizable with 5 membranes, 6 drip edges, and 3 termination bars
  • FREE takeoff service on awarded jobs, custom panel sizing, and bid and installation assistance
  • Pre-drilled holes every 6 inches on the termination bar for easy installation

BENEFITS

  • Reduces installation time by at least 50% compared to field-installed through-wall flashing systems
  • Convenient one-stop shopping for all necessary components—no delays waiting for separate items to arrive
  • Ideal for large projects, providing 50’ rolls for long runs and custom-sized panels for repetitive openings
  • Simple, fast installation with clear instructions and expert support
  • Weep tabs prevent clogging from mortar droppings and protect against insect entry
  • Effective for restoration projects with customizable sizes to meet specific needs
  • Guaranteed leak-proof installation thanks to high-quality materials and proven overlap and termination methods

APPLICATIONS

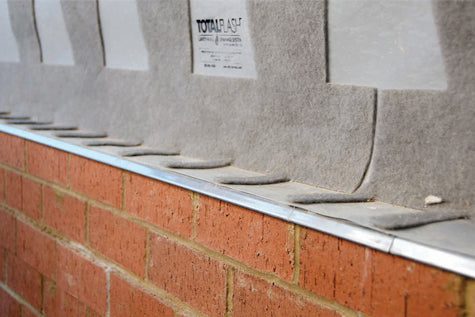

  • Base of wall
  • Above exterior wall openings and bond beams
  • Parapet walls
  • Anywhere flashing is needed

PACKAGING

  • Sold in boxes of 50 linear feet (10 panels of 5’ net each)

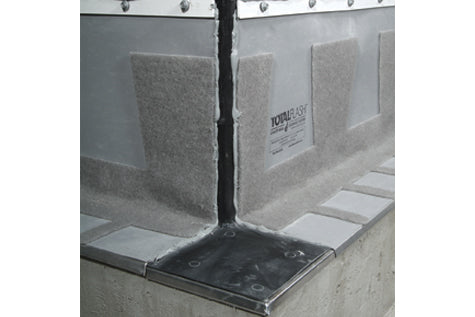

CompleteFlash 14″ inside/outside preformed High Corner Boots and end dams, preformed metal 900 outside drip edge corners, and BTL-1 sealant sold separately.

Standard Thickness Panel Height  Panel Length Panels/Box
EPDM – 0.045″


All other membranes – 0.040″

 12″ 5-1/2′ (5′ net) 10 panels/box
18″ 5-1/2′ (5′ net) 10 panels/box
24″ 5-1/2′ (5′ net) 10 panels/box
– Custom sizes are available on request
– 1 starter strip for left-to-right installation per box
– 100 self-tapping #14 x 2″ termination bar screws per box


Material Recycled Content LEED Form
Drainage mat/weep tabs 40% Pre-consumer Download TotalFlash LEED Form
PVC termination bar 100% Pre-consumer
Stainless steel drip edge 80% Post-consumer
Kynar® drip edge 23% Post-consumer


LEAD TIME

  • There is a 2 week production lead time on this product

RESOURCES

Call Us

+1 (833) 246-3900

Email Us

sales@masonrydirect.com

Chat With Us

We reply instantly

Free Shipping

On orders over $1,500

Quick Order

Membrane Termination Bar Drip Edge Price QuantityTotal
45-Mil EPDM PVC No Drip Edge $608.15 $0.00
45-Mil EPDM PVC Stainless Steel $695.25 $0.00
45-Mil EPDM Stainless Steel No Drip Edge $661.78 $0.00
45-Mil EPDM Stainless Steel Stainless Steel $748.88 $0.00
40-Mil Rubberized Asphalt PVC No Drip Edge $569.90 $0.00
40-Mil Rubberized Asphalt PVC Stainless Steel $657.00 $0.00
40-Mil Rubberized Asphalt Stainless Steel No Drip Edge $623.53 $0.00
40-Mil Rubberized Asphalt Stainless Steel Stainless Steel $710.63 $0.00
Thermoplastic Polyolefin (TPO) PVC No Drip Edge $673.15 $0.00
Thermoplastic Polyolefin (TPO) PVC Stainless Steel $760.25 $0.00
Thermoplastic Polyolefin (TPO) Stainless Steel No Drip Edge $726.78 $0.00
Thermoplastic Polyolefin (TPO) Stainless Steel Stainless Steel $813.88 $0.00
