Heckmann Corrugated Brick Anchor With Hole (250 Pieces/Box)

HECKMANN CORRUGATED BRICK ANCHOR WITH HOLE (187)

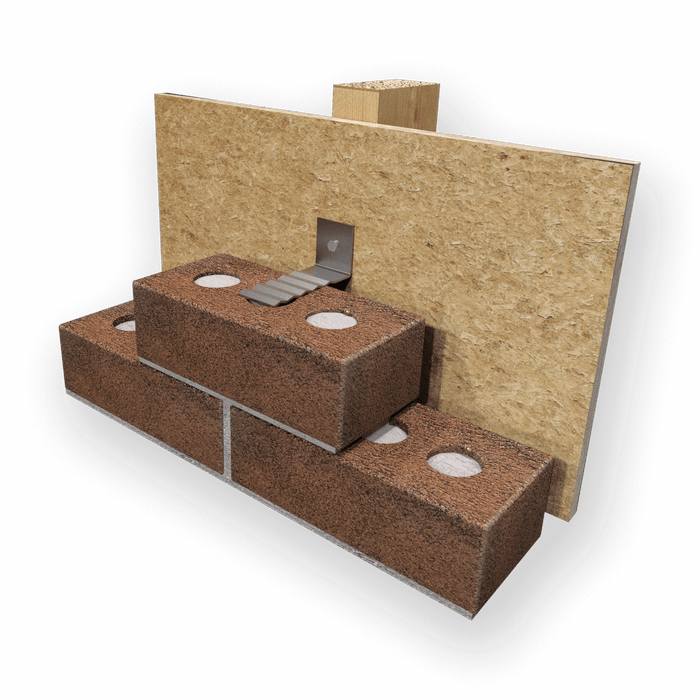

The Heckmann 187 Corrugated Brick Anchor with Hole is used for attaching brick veneer to wood backup walls, providing a simple and effective connection option for residential and light commercial masonry.

PRODUCT OVERVIEW

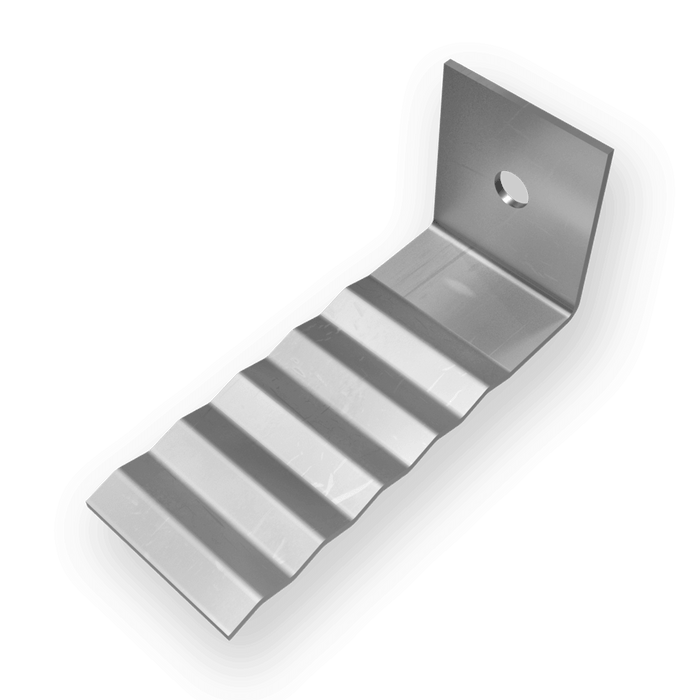

The Heckmann 187 corrugated anchor is manufactured from 16-gauge steel and designed with a centered 5/16" hole for secure fastening into wood substrates. The anchor features a 1-1/4" width with a 1-1/2" bend and is available in hot-dip galvanized, stainless steel, and Zinc Alloy 710 (firewall use).

STANDARD SIZES

• Standard lengths: 3-1/2", 5-1/2"

• Material thickness: 16 gauge

• Width: 1-1/4"

• Bend length: 1-1/2"

• Hole diameter: 5/16" centered

• Steel Finish: Hot-Dip Galvanized

FEATURES AND BENEFITS

• Simple veneer connection — ideal for attaching brick veneer to wood stud or wood sheathing backups

• Corrosion-resistant options — choose between hot-dip galvanized, stainless steel, or firewall-approved Zinc Alloy 710

• Code-compliant materials — all steel types meet required ASTM standards for durability and performance

• Fast and easy installation — centered 5/16" hole provides straightforward fastening and alignment

• Available for fire-rated assemblies — Zinc Alloy 710 options support firewall construction requirements

STEEL TYPES

• Hot-dip galvanized: ASTM A153 Class B-2 (1.50 oz/ft²)

• Stainless steel: Type 304 (ASTM A167, A666, A240/A240M) & Type 316 available upon request

• Plain carbon steel: ASTM A1008/A1008M, ASTM A36/A36M-08

• Firewall alloy: Zinc Alloy 710 (available in 1/8" and 16 gauge only) available upon request

PACKAGE QUANTITIES

• 250 Pieces Per Box

RESOURCES

• 187 Submittal Sheet
• Firewall Submittal Sheet
• 187 Specification
• Zinc Alloy SDS
• Stainless Steel Products SDS
• Hotdip Galvanized SDS
• Hot Rolled Steel Plate SDS
