3Gen Masonry Products H-13-V Veneer Anchor – 14 Ga Hot-Dip Galvanized

H-13-V VENEER ANCHOR

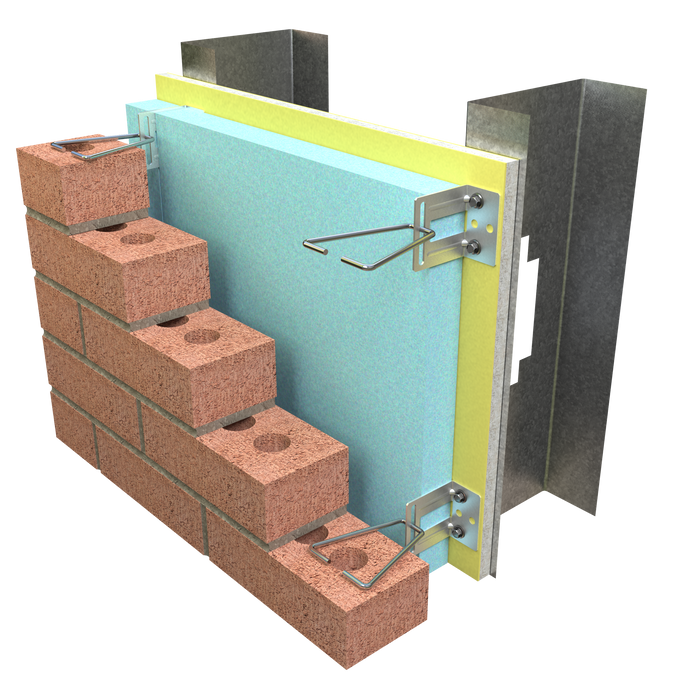

The H-13-V Veneer Anchor is a versatile anchoring solution designed for securing brick veneer to metal stud, wood stud, CMU, or poured concrete backup. Manufactured from 14 gauge carbon steel and hot-dip galvanized after fabrication, this anchor delivers reliable performance for standard applications.

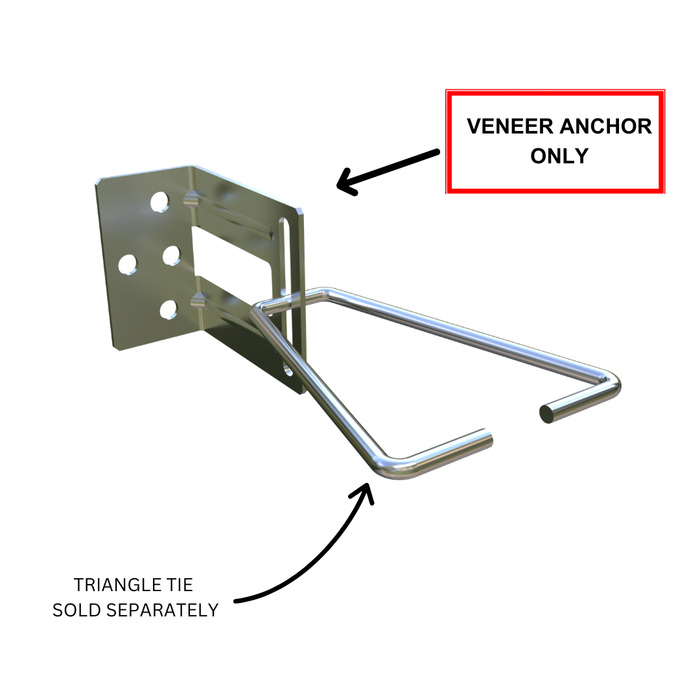

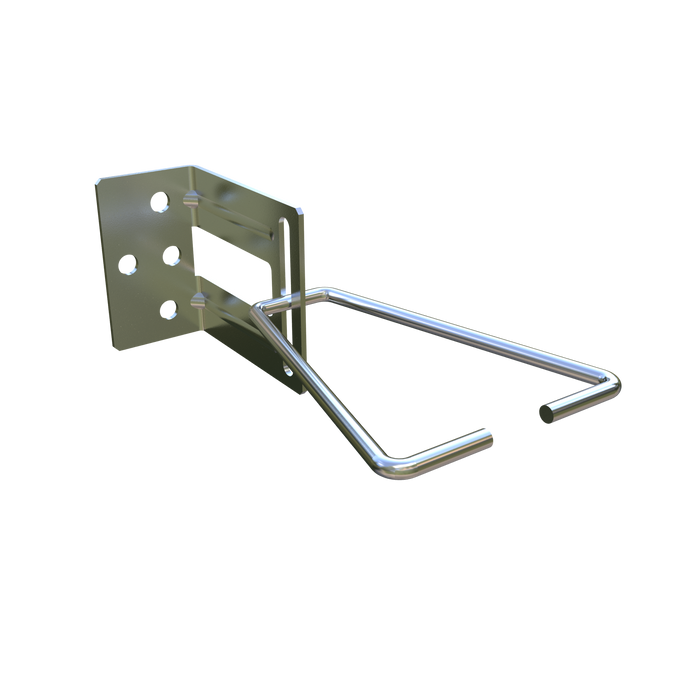

Its multifunctional design allows for both horizontal installation with a hook and vertical installation with a triangle, providing flexibility in the field while maintaining structural integrity.

FEATURES

• Multi-purpose design supports both horizontal (hook) and vertical (triangle) installation
• Wide compatibility suitable for metal stud, wood stud, CMU, and concrete backup
• Insulation compatible works with rigid and spray foam insulation
• 14 gauge steel construction provides dependable strength for veneer anchoring
• Hot-dip galvanized finish enhances corrosion resistance for long-term durability
• Proven performance withstands 100 lbs in tension and compression with minimal deflection

APPLICATIONS

• Brick veneer over metal stud framing
• Brick veneer over wood stud framing
• Masonry veneer over CMU or poured concrete


SPECIFICATIONS

• Gauge 14 ga
• Material carbon steel
• Finish hot-dip galvanized after fabrication
• Tensile strength 80,000 psi
• Yield strength 70,000 psi
• Performance 100 lbs tension/compression with ≤ 0.05" deflection

STANDARDS & COMPLIANCE

• TMS 402/602
• ACI / ASCE 530
• ASTM A1008 / A1008M – Sheet steel
• ASTM A1064 / A1064M – Wire
• ASTM A153 / A153-B2 – Hot-dip galvanizing (1.5 oz/ft²)

INSTALLATION NOTES

• Recommended spacing 16" O.C.
• Install as hook or triangle depending on application
• Suitable for use with rigid or spray foam insulation
