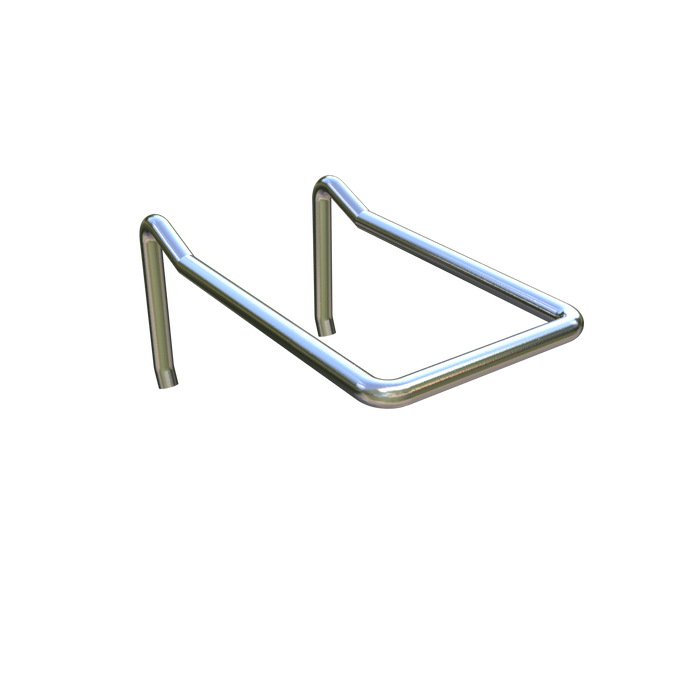

3Gen Masonry Products Hook (Pintle) – Hot Dip Galvanized Wire Pintle for H-13 Veneer Anchor Systems (350 Pieces/Box)

HOOK (PINTLE) PROVIDES A SECURE AND ADJUSTABLE CONNECTION IN MASONRY VENEER SYSTEMS WHEN USED WITH H-13 VENEER ANCHORS AND WIRE EYE SYSTEMS

The Hook (Pintle) is designed for use in masonry cavity wall construction, connecting to H-13 veneer anchors and wire eye systems to create a strong and adjustable anchoring assembly. Manufactured from durable steel and finished with hot dip galvanizing, this pintle offers corrosion resistance and long-term performance in both interior and exterior wall systems. Its simple design allows for efficient installation while maintaining proper embedment and alignment within the masonry joint.

FEATURES

• Designed For Use With H-13 Veneer Anchor And Wire Eye Systems
• Hot Dip Galvanized Finish Provides Corrosion Resistance
• 3/16” Diameter Wire Delivers Strength And Durability
• Allows For Adjustable Positioning And Proper Embedment
• Compatible With THERM-A-BREAK™ Wing Anchor Systems

USES

• Brick Veneer Anchoring Systems
• Cavity Wall Construction
• Commercial Masonry Applications
• Residential Masonry Projects
• Insulated Wall Assemblies

SIZES / OPTIONS

• Wire Diameter: 3/16”
• Lengths Available: 3”, 4”, 5”, 6”, 7”
• Finish: Hot Dip Galvanized
• Packaging: 350 Pieces Per Box

CODE COMPLIANCE

Meets TMS 402/602 & ACI / ASCE 530 Building Code Requirements and Specification for Masonry Structures.

INSTALLATION NOTE

Recommended spacing is 16” on center when used with H-13 veneer anchor and THERM-A-BREAK™ wing anchor systems.
