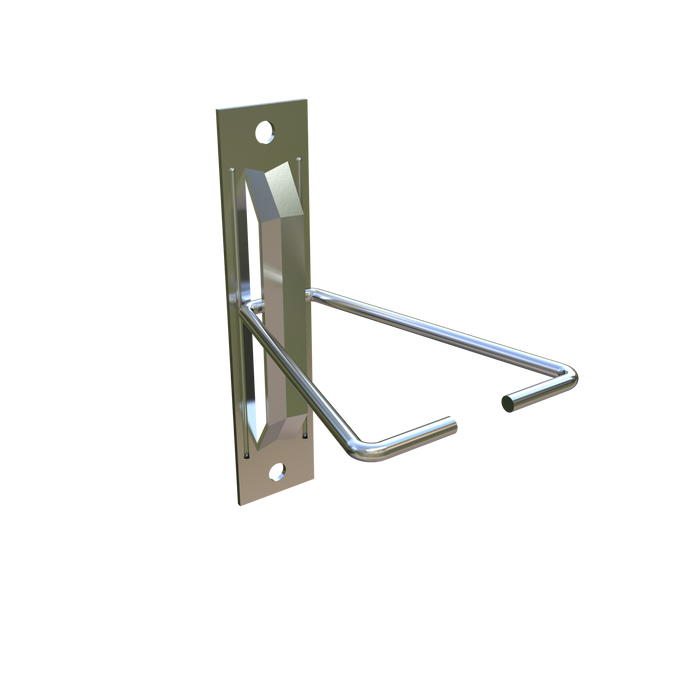

3Gen Masonry Products H-10 Veneer Anchor – 14 Gauge Stainless Steel Adjustable Brick Anchor for Metal Stud, Wood Stud, CMU & Concrete (250 Pieces/Box)

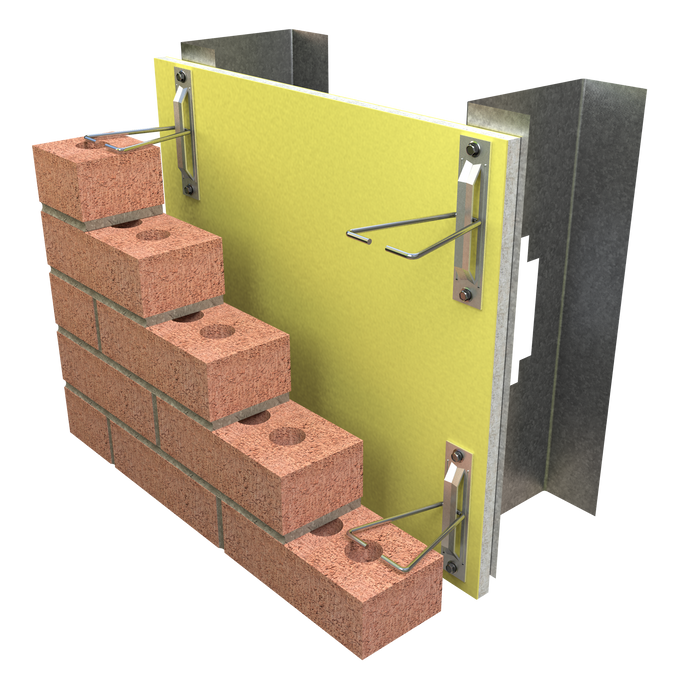

STAINLESS STEEL H-10 VENEER ANCHOR PROVIDES A HIGH-PERFORMANCE, CORROSION-RESISTANT CONNECTION FOR SECURING BRICK VENEER TO A VARIETY OF BACKUP WALL SYSTEMS

The H-10 Veneer Anchor is designed to deliver strong, consistent performance in masonry veneer applications. Manufactured from stainless steel, this anchor provides superior corrosion resistance for exterior walls, coastal environments, and high-moisture conditions. Its adjustable design allows for proper alignment and embedment, making it a versatile solution across a wide range of construction types including metal stud, wood stud, CMU, and poured concrete.

FEATURES

• Adjustable Design Allows For Proper Veneer Alignment Across Multiple Backup Systems
• Stainless Steel Construction Provides Maximum Corrosion Resistance
• Ideal For Exterior, Coastal, And High-Moisture Environments
• Compatible With Metal Stud, Wood Stud, CMU, And Poured Concrete
• High Load Capacity For Both Tension And Compression Applications

USES

• Brick Veneer Anchoring
• Cavity Wall Construction
• Commercial Masonry Systems
• Residential Masonry Applications
• New Construction And Retrofit Projects

SIZES / OPTIONS

• Material Thickness: 14 Gauge Only
• Triangle Diameter: 3/16”
• Triangle Lengths: 3”, 4", 5"
• Material: Stainless Steel
• Packaging: 250 Pieces Per Box

STRUCTURAL PERFORMANCE

• 14 Gauge: Exceeds 100 lbs. in tension and compression without deformation or excessive play
• Test results available upon request

INSTALLATION NOTE

Recommended spacing is 16” on center when used with H-10 veneer anchors.
