The PROSOCO Concrete Patch-Tie is a stainless steel helical-shaped anchor that provides a non-corrosive mechanical connection between damaged concrete and patching material. It’s typically applied with concrete patch repairs to balconies, curbs, coping, precast, columns, beams, and flatwork.

Features

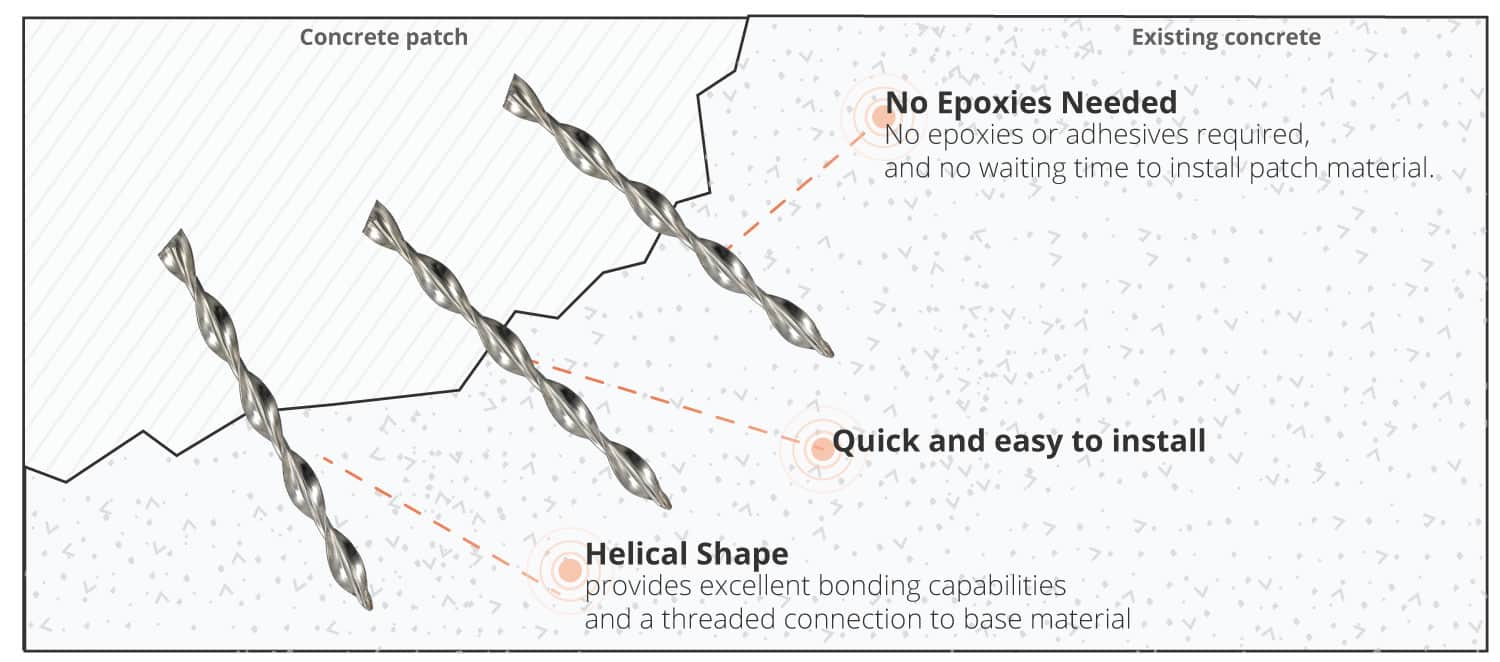

• No epoxies or adhesives required, and no waiting time to install patch material – Saves time and simplifies repairs

• Quick and easy to install – Ideal for fast-paced job sites

• Spiral shape provides excellent bonding capabilities and a threaded connection to base material – Ensures a strong mechanical connection

• Positive connection and length for most patching applications – Versatile and reliable

Overview

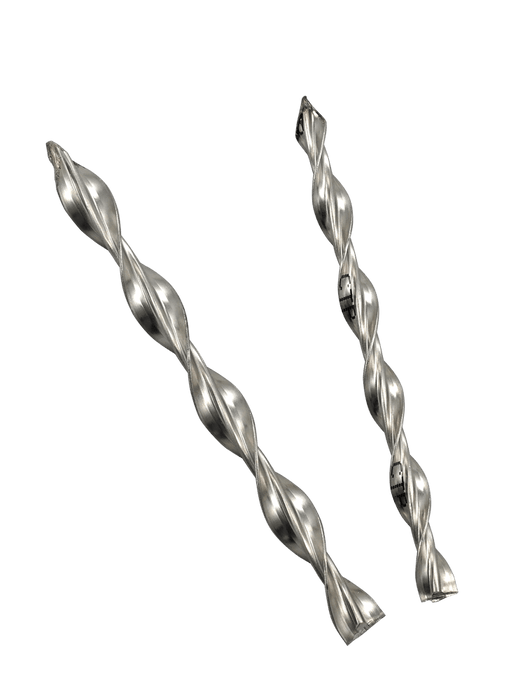

The Concrete Patch-Tie is a stainless steel, helical-shaped anchor that provides a non-corrosive mechanical connection between damaged concrete and patching material. The Concrete Patch-Tie is 8-mm in diameter and manufactured of type 304 stainless steel. It is available in 3-inch lengths. The thread pitch is 0.79 threads per inch, and cross-sectional area is 0.016 square inches. Typical yield is 108,000 psi and tensile of 128,000 psi. The minimum embedment is 1-3/4-inch in the concrete sub-strata, which provides a 1-1/4-inch embedment for the patching material.
