Mortar Net TotalFlash Roll Masonry Flashing System
Ships in 1–2 Weeks
Once an order is placed, no changes, cancellations, or returns are accepted.
TOTALFLASH® ROLL MASONRY CAVITY WALL DRAINAGE SOLUTION IT'S MUCH MORE THAN JUST FLASHING
KEEP VENEER WALLS DRY AND INSTALL FASTER WITH TOTALFLASH

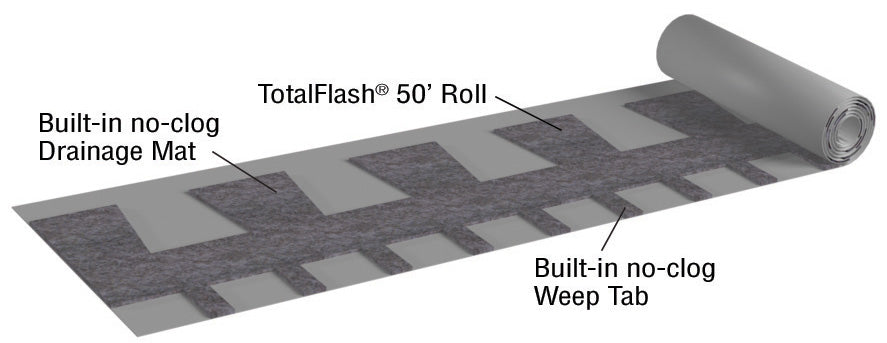

The TotalFlash® Roll is a revolutionary masonry cavity wall drainage system designed to outperform standard through-wall flashing while slashing installation time. This patented system integrates a flashing membrane, a 90% open-weave mortar collection drainage mat, and weep tabs into a single roll, ensuring superior moisture protection and reduced labor costs. Trusted by professionals, with over 1 million feet sold, TotalFlash is the ultimate solution for durable and efficient veneer wall installations.
FEATURES
- Effective Drainage System: 90% open-weave polyester mesh collects mortar droppings while integrated weep tabs ensure consistent moisture drainage.
- Customizable Heights: Standard 18″ height with 12″, 24″, and other custom sizes available upon request.
- Durable Membranes: Choose from 40-mil non asphaltic, 40-mil rubberized asphalt, 45-Mil EPDM, 2-Mil Type 304 Stainless Steel, 2-Mil Type 304 Self-Adhering Stainless Steel, 5 oz. Copper, or 5 oz. Self-Adhering Copper.
- Accessory Options: Drip edges, termination bars, and mounting screws sold separately for complete installation needs.
BENEFITS
- Streamlined Installation: Combines multiple components into one system, dramatically reducing labor time and complexity.
- Reliable Performance: Proven overlap and termination methods create airtight and watertight seals.
- Integrated Weep Tabs: Prevent clogging from mortar and block insect entry for uninterrupted cavity performance.
- Versatile Applications: Ideal for restoration projects and custom configurations without added costs.
- Comprehensive Support: Clear instructions, extensive product support, and high-quality materials for leak-proof results.
COMPLETE YOUR SYSTEM
Enhance your installation with additional accessories:
- CompleteFlash™ 14″ Inside/Outside Preformed High Corner Boots
- Preformed Metal Outside Drip Edge Corners
- Metal Adjustable Drip Edge Corners
- BTL-1 Sealants
PRODUCT PACKAGING
| Membrane Type | Membrane Size | Item Number | Quantity |
|---|---|---|---|
| 40-Mil Non-Asphaltic | 12” x 75’ | 02-X-0587 | 3 Rolls/Box |
| 18” x 75’ | 02-X-0588 | 2 Rolls/Box | |
| 24” x 75’ | 02-X-0589 | 1 Roll/Box | |
| 40-Mil Rubberized Asphalt | 12” x 75’ | 02-X-0463 | 3 Rolls/Box |
| 18” x 75’ | 02-X-0464 | 2 Rolls/Box | |
| 24” x 75’ | 02-X-0465 | 1 Roll/Box | |
| 45-Mil EPDM | 12” x 50’ | 02-X-0455 | 3 Rolls/Box |
| 18” x 50’ | 02-X-0456 | 2 Rolls/Box | |
| 24” x 50’ | 02-X-0457 | 1 Roll/Box | |
| 2-Mil Type 304 Stainless Steel | 12” x 60’ | 02-X-0467 | 3 Rolls/Box |
| 18” x 60’ | 02-X-0468 | 2 Rolls/Box | |
| 24” x 60’ | 02-X-0590 | 1 Roll/Box | |
| 2-Mil Type 304 Self-Adhering Stainless Steel | 12” x 50’ | 02-X-0688 | 3 Rolls/Box |
| 18” x 50’ | 02-X-0689 | 2 Rolls/Box | |
| 24” x 50’ | 02-X-0690 | 1 Roll/Box | |
| 5 oz. Copper | 12” x 60’ | 02-X-0697 | 3 Rolls/Box |
| 18” x 60’ | 02-X-0698 | 2 Rolls/Box | |
| 24” x 60’ | 02-X-0699 | 1 Roll/Box | |
| 5 oz. Self-Adhering Copper | 12” x 25’ | 02-X-0700 | 3 Rolls/Box |
| 18” x 25’ | 02-X-0701 | 2 Rolls/Box | |
| 24” x 25’ | 02-X-0702 | 1 Roll/Box |
RESOURCES
- TotalFlash® Roll Product Overview
-
TotalFlash® Roll Technical Data Sheet
- TotalFlash® Roll Installation Instructions – EN, SPA & POL
- TotalFlash® Roll Copper Laminate Submittal Package
- TotalFlash® Roll EPDM Submittal Package
- TotalFlash® Roll Rubberize Asphalt Submittal Package
- TotalFlash® Roll Thermoplastic Polyolefin Submittal Package
- Mortar Net Solutions Catalog
- Mortar Net Solutions Warranty
- TotalFlash® Copper Membrane SDS
- TotalFlash® EPDM Membrane SDS
- TotalFlash® Mesh SDS
- TotalFlash® Rubberized Asphalt Membrane SDS
- TotalFlash® TPO Membrane Safety Data Sheet
