Column Weld-On Tie – Masonry Anchor for Structural Steel Columns & Beams – 250/Box
Ships in 1–2 business days
COLUMN WELD-ON TIE PROVIDES A STRONG AND RELIABLE CONNECTION FOR ANCHORING MASONRY TO STRUCTURAL STEEL WHILE ALLOWING FOR VERTICAL DIFFERENTIAL MOVEMENT

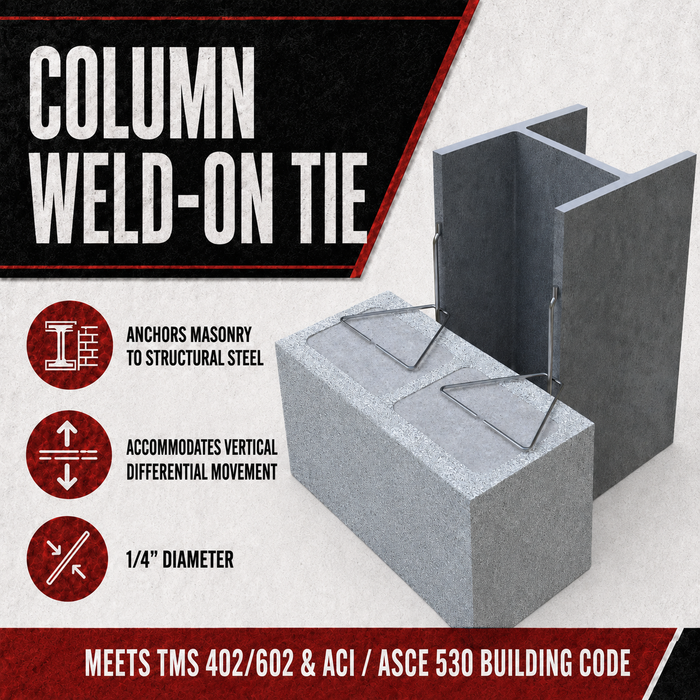

Column Weld-On Tie is designed to anchor masonry veneer to structural steel columns and beams in commercial construction. Engineered to accommodate vertical differential movement between steel framing and masonry, this tie helps maintain wall integrity while reducing stress transfer. Manufactured from high-strength carbon steel, it is available in hot dip galvanized and mill galvanized finishes to meet project requirements and environmental conditions.
FEATURES
- Designed For Welding Directly To Structural Steel Columns And Beams
- Accommodates Vertical Differential Movement Between Steel And Masonry
- High-Strength Carbon Steel Construction
- Available In Hot Dip Galvanized And Mill Galvanized Finishes
- Meets TMS 402/602 & ACI / ASCE 530 Masonry Code Requirements
USES
- Masonry To Structural Steel Connections
- Steel Column And Beam Applications
- Brick Veneer Anchoring Systems
- Commercial Masonry Construction
- High-Rise And Structural Framing Projects
SIZES / OPTIONS
- Wire Diameter: 1/4”
-
Finishes Available:
- Hot Dip Galvanized (ASTM A153-B2)
- Plain Steel (Bright Basic)
- Hot Dip Galvanized (ASTM A153-B2)
- Packaging: 250 Pieces Per Box
SPECIFICATIONS
| Property | Value |
|---|---|
| Material | Carbon Steel (ASTM A1064 / A1064M) |
| Tensile Strength | 80,000 psi |
| Yield Strength | 70,000 psi |
| Hot Dip Galvanizing | ASTM A153 / A153-B2 (1.5 oz/ft²) |
| Mill Galvanized | ASTM A641 / A641M (0.1 oz/ft²) |
INSTALLATION NOTE
Designed to be welded directly to structural steel members. Ensure proper weld procedures are followed per project specifications.
SUSTAINABILITY
- 85% Post-Consumer Recycled Content
- 10% Post-Industrial Recycled Content
